10x2inch PU Ultra Heavy Duty Wheels 6600lbs Swivel Industrial Casters Double Wheel

  • 10x2inch PU Ultra Heavy Duty Wheels 6600lbs Swivel Industrial Casters Double Wheel
Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I005A250RCPUP-TW
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Wooden box
Delivery Time 7-15days
Supply Ability 5000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 10x2inch Korea Type PU Ultra Heavy Duty Wheels 6600lbs Capacity Swivel Industrial Casters Double Wheel Style Super Heavy Duty 10 Inch Caster
Wheel Color Red+Silver Wheel Diameter 10x2inch
Wheel Material Cast Iron+PU Wheel Width 2inch
High Light

6600lbs Heavy Duty Wheels

,

Swivel Industrial Heavy Duty Wheels
Leave a Message
Product Description

10x2inch Korea Type PU Ultra Heavy Duty Wheels 6600lbs Capacity Swivel Industrial Casters Double Wheel



Description:

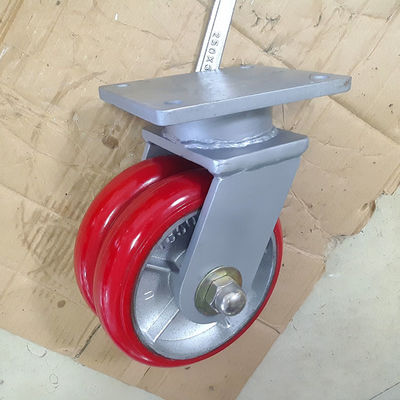

This is a 10 inch diameter double wheel super heavy castor. The wheel is composed of cast iron wheel core and polyurethane tread coating. The bearing capacity can reach 3 tons.

The tread coating of wheels is circular arc, which is a popular shape in South Korea.

Precise double ball bearings with higher load are adopted to ensure smooth rotation of wheels. Compared with the single wheel model, the double wheel model has a larger contact surface, lower unit pressure, and is less likely to damage the floor.





Product Specifications:



Model Number

Wheel Diameter/

Width
MM

 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
lbs
I005A100RCPUP-TW 100X50 180

180x145



 140X105 13 Double ball bearing 2970
I005A125RCPUP-TW 125X50 195 180x145 140X105 13 Double ball bearing 2970
I005A150RCPUP-TW 150X50 210 180x145 140X105 13 Double ball bearing 2970
I005A200RCPUP-TW 200X50 250 180x145 140X105 13 Double ball bearing 2970
I005A250RCPUP-TW 250X50 330 200X153 160X90 13 Double ball bearing 6600
I005A300RCPUP-TW 300X50 380 200X153 160X90 13 Double ball bearing 6600









Our Services:



10x2inch PU Ultra Heavy Duty Wheels 6600lbs Swivel Industrial Casters Double Wheel 0



FAQ:



Q: 6600lbs is not enough for my moving truck. Do you have a better one?

A: Yes, please check this steel pu casters.



Q: If i need a caster with wheel wide over 3 inch, is that possible?

A: Yes, we can do it.



Q: Is it the biggest size of 300mm?

A: No, you can share detail specifications, we can help you to produce .



Q: Shipping by sea cost too much time. If i need casters very soon. How will you do?

A: Shipping by boat is the most economical way. If you are in a hurry, and you can accept the cost, we can arrange the flight for you.



Q: Is there any other material available?

A: So far we got iron pu, steel pu, solid steel, nylon. They are all suit for very heavy using. If you have any idea, you can tell us.
