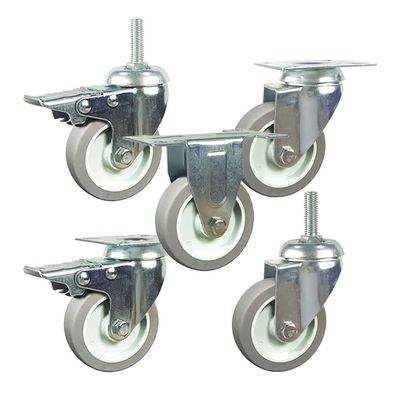

100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors

  • 100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors
  • 100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors
  • 100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors
  • 100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors
  • 100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors
  • 100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors
Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I001D100TPRPF
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details OPP bag+carton
Delivery Time 7-15days
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wholesales 100mm Soft Wheel Screw Fixed Rigid Plate Gray TPR Light Duty Casters For Air Coolors Style Rigid Plate Soft Tpr Casters
Bracket Surface Treament： Zinc Painted Mounting Type Top Plate
Wheel Type Tread On Pp Wheel Material Grey TPR
High Light

100mm rigid plate caster

,

Air Coolors rigid plate caster

,

100mm screw fixed caster
Leave a Message
Product Description

Wholesales 100mm Soft Wheel Screw Fixed Rigid Plate Gray TPR Light Duty Casters For Air Coolors



Description:



Here is the plate gray tpr light duty caster wheel with direction bracket. This is the 4" type, it's mounting plate size is 100x57mm, bolt hole spacing is 81x40mm. The plate shape is different from the swivel type and swivel total brake type .



TPR matrial type wheel can protect floor well since they are soft enough, and no marking. They are quite low noise at the same time.



Their mounting type including top plate, bolt hole, threaded stem, stem and grip ring stem is also ok if necessary.


Usually used in furniture like air coolor and industrial fans.



100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors 0



Product Specifications:



Plate Fixed/Rigid Type TPR Soft Wheel Casters



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
LBS
I001D100TPRPF 100x27 130 100x57 81x40 8.5 Plain Bearing 110





Plate Swivel Type



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
LBS
I001D100TPRP 100x27 130 76x76 55x55 15x8.5 Plain Bearing 110





Bolt Hole Type



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
LBS
I001D100TPRD 100x27 130 12.5 Plain Bearing 110



Threaded Stem Type



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Threaded Stem Size
MM		 Bearing Type Loaded Capacity
LBS
I001D100TPRT 100x27 130 12x30 Plain Bearing 110







The Workshops:



100mm Soft Wheel Gray TPR Screw Fixed Rigid Plate Caster For Air Coolors 1



FAQ:



Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer. Our factory has been specializing in all kinds of caster wheels since 1997.



Q: Beside caster wheels, do you produce platform trolleys? My client needs trolleys too.

A: Yes, we also make that too. You can check them by click the platform trolleys



Q: What is your delivery time?

A: In general, within 20 days. It also depends on the order quantity.



Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PROFORMA INVOICE, and balance will be cleared by T/T or L/C before delivery.



Q: If i need this type of casters with stainless steel brakcet, can you do that?

A: Yes, we are caster wheels manufacturer, that's available.



Q: I want to built a shop on Amazon, what can you offer me ?

A: That's fine, too. We are experienced on that. You can check the services.
