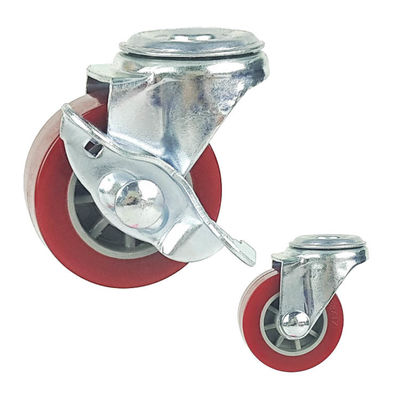

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake

  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
  • 1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I001C040PUDB1
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details OPP bag+carton
Delivery Time 7-15days
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customize 1.5 Inch Small Wheels Light Duty Swivel Bolt Hole Red PU Caster Wheels With Brake For Furnitures Style Light Duty Bolt Hole Pu Casters
Wheel Size 1.5" Wheel Material Polyurethane/PU
Color Of Wheel Red Bearing Type Plain Bearing
High Light

Bolt Hole PU Caster Wheels

,

1.5 Inch PU Caster Wheels

,

1.5 Inch Swivel Caster Wheels
Leave a Message
Product Description

Customize 1.5 Inch Small Wheels Light Duty Swivel Bolt Hole Red PU Caster Wheels With Brake For Furnitures





Description:

Zinc plated bracket 2 inch swivel head red pu light duty caster wheel.

Mounting type bolt hole, other type are also available, depend on you.
Wheel diameter 40mm.
Loaded capacity 20 kg.
Made of PU, PP and steel.

No bearing caster wheel.

Side brake only stop the wheel from running, can't fixed the direction.
Apply to many applications like shelves, food carts.







Product Specifications:

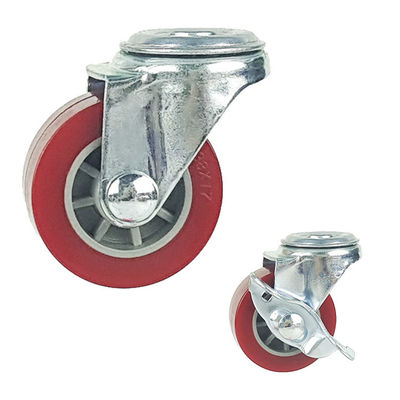

Bolt Hole Type Side Brake PU Casters



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I001C050PUDB1 50x20.3 65 8 / 30
I001C065PUDB1 65x25 84 8 40
I001C075PPDB1 75x25 93 10 50



1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake 0

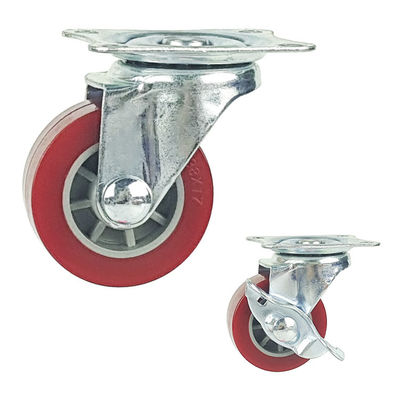

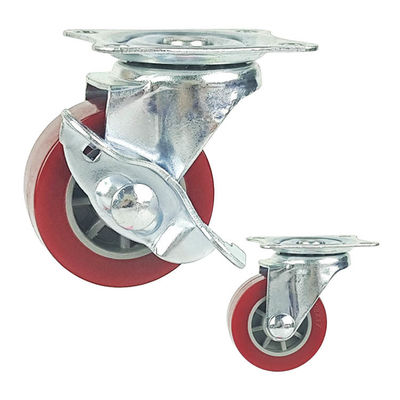

Plate Swivel Type



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I001C025PUP 25x13 38 39x33 30x24 4 / 10
I001C030PUP 30x13 40 39x33 30x24 5 15
I001C040PUP 40x16.3 50.5 46x38 36x28 6 20
I001C050PUP 50x20.3 65 58x46 46x35 6 30
I001C065PUP 65x25 84 70x58 53.5x40 8 40
I001C075PUP 75x25 93 70x58 53.5x40 8 50



1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake 1

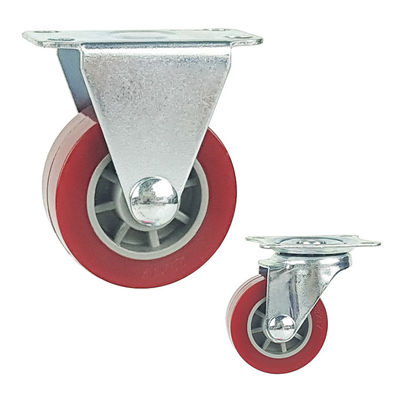

Plate Fixed/Rigid Type



Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I001C025PUPF 25x13 38 37x19 29 4 / 10
I001C030PUPF 30x13 40 37x19 29 5 15
I001C040PUPF 40x16.3 50.5 46x25 36x15 6 20
I001C050PUPF 50x20.3 65 58x38.5 45x25 6 30
I001C065PUPF 65x25 84 70x47 55x27 8 40
I001C075PUPF 75x25 93 70x47 55x27 8 50



1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake 2

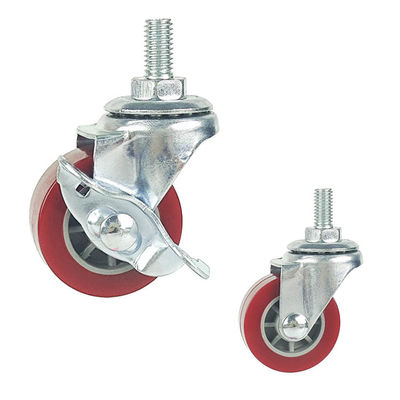

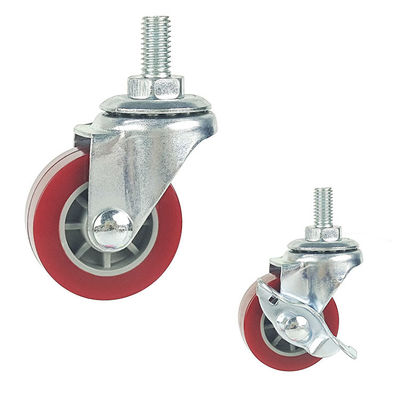

Threaded Stem Type



odel Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Threaded Stem Size
MM		 Bearing Type Loaded Capacity
KG
I001C040PUT 40x16.3 50.5 8x15 / 20
I001C050PUT 50x20.3 65 8x15 30
I001C065PUT 65x25 84 10x25 40
I001C075PUT 75x25 93 10x25 50



1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake 3

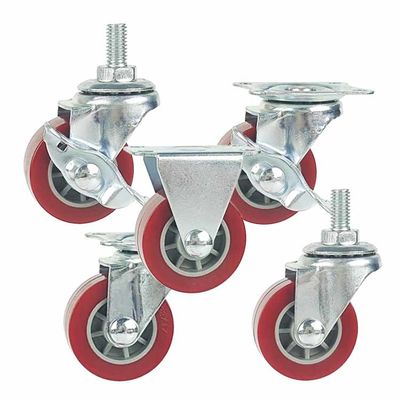

Bulk Casters Of Bolt Hole Type PU Wheels

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake 4



Services:



1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake 5



FAQ:





Q: What is your delivery time?

A: Normally within 20 days. It also depends on the order quantity.



Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.



Q: The pu material caster is a bit expensive, do you have an economical style?

A: Yes, the light duty pvc casters is suitable, almost the similar performance.



Q: If i buy a container of this light duty pu casters, can you help me to arrange the shipment?

A: Yes, my friend. We have helped a lot of our customer to do that.
