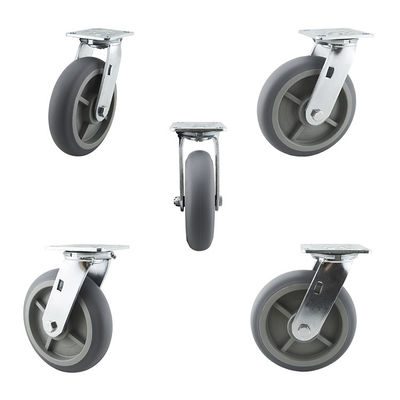

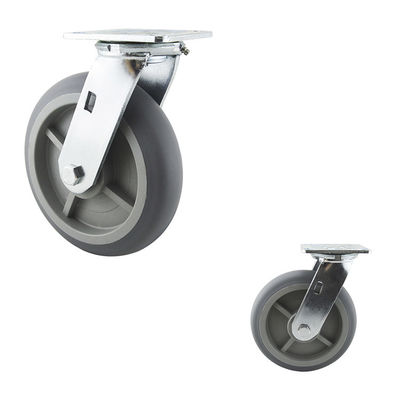

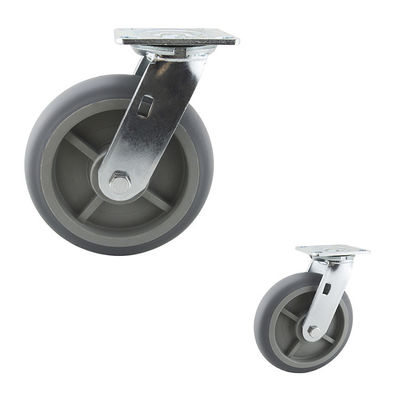

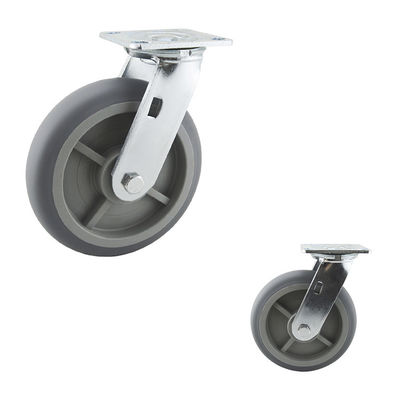

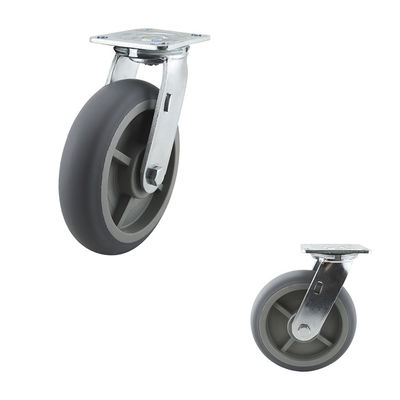

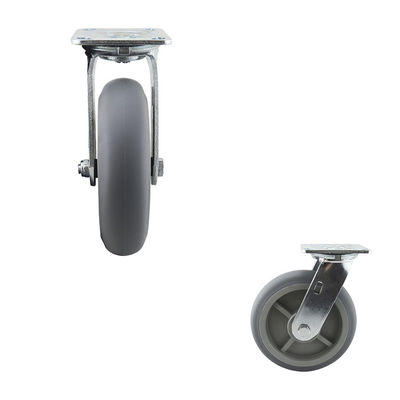

Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels

  • Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels
  • Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels
  • Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels
  • Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels
  • Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels
  • Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels
Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I004A200TPRP
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Carton
Delivery Time 7-15days
Payment Terms L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability 80000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name WBD Supplys 8" Grey TPR 280kg Capacity Swivel Plate Double Ball Bearing Heavy Duty Casters Style 8" TPR Swivel Heavy Duty Casters
Wheel Size 8" Wheel Material Grey TPR
Caster Type Rotating Caster Bearing Double Ball Bearing
Feature Waterproof
High Light

TPR industrial swivel plate

,

280kg industrial swivel plate

,

8 Inch Swivel Plate Caster Wheels
Leave a Message
Product Description

8" Grey TPR 280kg Capacity Swivel Plate Double Ball Bearing Heavy Duty Casters


Quality casters featuring bright zinc plating, 25/64" diameter axle bolt and grease nipple. With double ball bearing heat-treated raceways, and 33/64" bolted kingpins, these casters are ideal for dollies, platform trucks, shop floors, warehouse carts and freight terminals. Heavy duty casters are well-suited for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Also ideal installed on drywall carts, welding carts, and wall panel carts.



Wheel size: 8" x 2"
Capacity: 280kg
Top plate size: 4" x 4-1/2"
Bolt hole spacing dimensions: 2-5/8" x 3-5/8" to 3" x 3"
Bolt size: 33/64" (hardware not included)
Mounting Height: 9-1/2"
Wheel rotates on roller bearing (Use for manual speeds; 3 mph.)
Tread Hardness: 70-80 Shore (A) Durometer


Description:


Swivel type heavy duty casters, 8" grey tpr wheels. They can rotate 360 degree or more, and they are softer than other material like pp, nylon, or polyurethane. Even Though, they can bear 616lbs per wheel, and 2464lbs per set. Each set including 4 casters.
Though they can rotate every direction, they can not be stop if you place them on sloped ground. You need to stop them with extra blocks from running away. Or you can choose the side brake one, even total brake type.

Product Specifications:

8" TPR swivel heavy duty casters



Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Distance
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I004A200TPRP 200x50 240 115x100 85x72 20x13 Ball 280


Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels 0



8" TPR rigid heavy duty casters



Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Distance
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I004A200TPRPF 200x50 240 115x100 85x72 20x13 Ball  280


Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels 1


8 inch TPR swivel side brake heavy duty casters



Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Distance
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I004A200TPRPB1 200x50 240 115x100 85x72 20x13 Ball 280


Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels 2














About Us:

Grey TPR 280kg Capacity 8 Inch Double Ball Bearing Swivel Plate Caster Wheels 3

FAQ:

Q: What is the feature of this type TPR heavy duty casters?
A: They are environmentally friendly, low noise, soft, no-marking.

Q: Are these TPR heavy duty casters durable?
A: Yes, they are all equipped double ball bearing, so they can run smoothly, and live longer.


Q: Will these TPR heavy duty casters damage my floor?
A: No, TPR casters are soft wheels.

Q: How many degrees can this TPR caster turn?
A: In theory, there is no limit to the angle they can rotate.
