TPR Hands Free Side Brake Pedal Swivel 6" Braked Swivel Castors

Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I004A150TPRPB1
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Carton
Delivery Time 7-15days
Payment Terms L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability 80000pcs per month
Product Details
Product Name 6" Side Brake TPR Wheel Gray Single Pedal Swivel Heavy Duty Casters Supplier Style 6" TPR Side Brake Heavy Duty Casters
Wheel Size 6" Wheel Material Thermoplastic Rubber+PP Core
Caster Type Side Brake Caster Bearing Ball
Feature Side Lock
High Light

6" braked swivel castors

,

Side Pedal braked swivel castors

,

TPR hands free brake casters

Leave a Message
Product Description

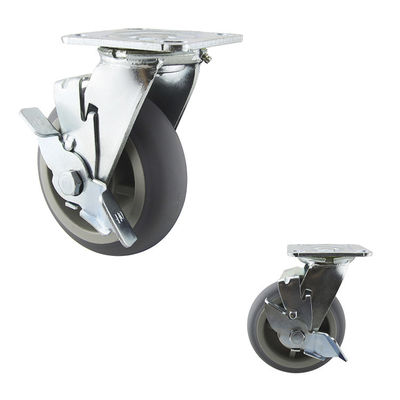

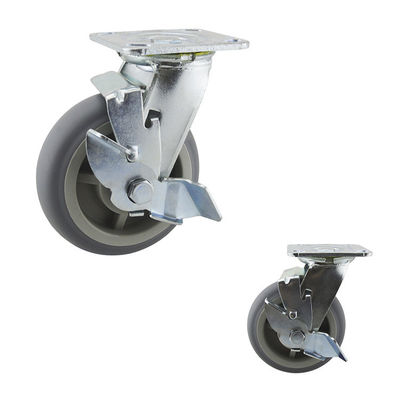

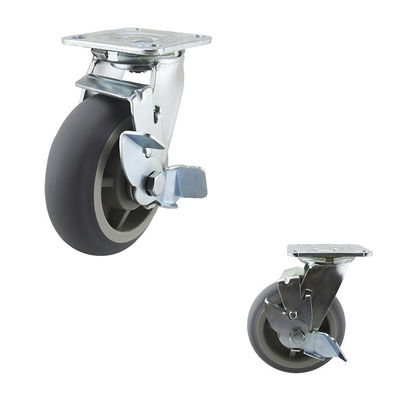

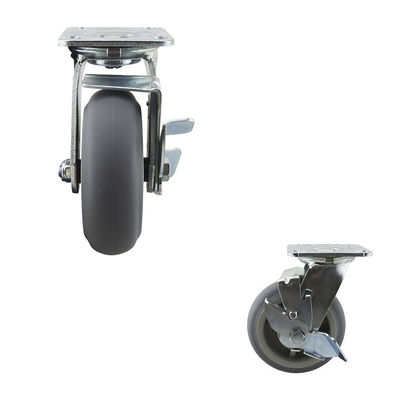

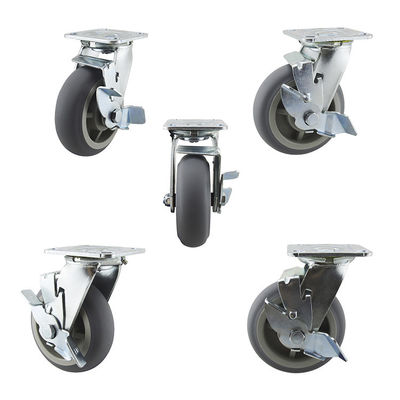

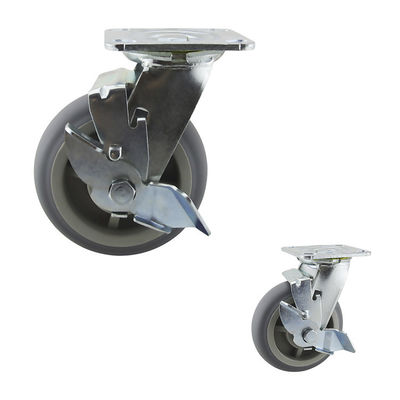

 6" Side Brake TPR Wheel Gray Single Pedal Swivel Heavy Duty Casters Supplier


  • Plate caster has a flat base with holes for bolting or welding to an object
  • Swivel caster allows a 360-degree change in direction
  • Strap brake prevents rolling with friction against top tread of wheel
  • Polyurethane on polyolefin wheel rolls with ease, has a medium-soft tread, is quiet, resists abrasion and impact, and provides floor protection
  • Dust cover protects the wheel bearing and swivel ball races

Description:
6" sidelock swivel plate gray TPR heavy-duty casters are tread on wheel casters. Soft material, thermoplastic rubber tread with pp core.TPR is short of thermoplastic rubber. Generally, its hardness is 85±5 Shore A, which is lower than that of polyurethane. It also has the characteristics of being quiet and leaving no traces. Compared with other hard casters, it can provide enough protection for the floor.

Product Specifications:

6" TPR swivel side brake heavy-duty casters



Model Number Wheel Diameter/Width
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Distance
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
LBS
I004A150TPRPB1 150x50 190 115x100 85x72 20x13 Double Ball 550





Plate casters are wheeled mechanisms used to support and maneuver objects such as carts, racks, and dollies. Plate casters are named for their mounting system: they have a flat plate, usually with four bolt holes, that forms the top of the caster and attaches to the object. Plate casters vary in their maneuverability. Some are rigid and only roll at a fixed angle, while other casters swivel to allow a 360-degree change in direction. Plate casters may have brakes, and swivel casters may have locks to set them to a fixed angle. Casters may have single or twin (dual) wheels made from a variety of materials. Generally, wheels with hard tread material have a higher load capacity and roll easier than soft tread wheels, which provide quieter operation and cushioning. Load capacity for plate casters is also affected by tread width and wheel diameter. Plate casters are used on furniture, carts, shelving, appliances, scrap bins, production dollies, and utility trucks for material handling applications in a variety of industries.


TPR Hands Free Side Brake Pedal Swivel  6" Braked Swivel Castors 0

6" TPR swivel plate heavy duty casters



Model Number Wheel Diameter/Width
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Distance
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
LBS
I004A150TPRP 150x50 190 115x100 85x72 20x13 Double Ball 550


TPR Hands Free Side Brake Pedal Swivel  6" Braked Swivel Castors 1



6" TPR rigid heavy duty casters



Model Number Wheel Diameter/Width
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Distance
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
LBS
I004A150TPRPF 150x50 190 115x100 85x72 20x13 Double Ball  550


TPR Hands Free Side Brake Pedal Swivel  6" Braked Swivel Castors 2















About Us:

TPR Hands Free Side Brake Pedal Swivel  6" Braked Swivel Castors 3

FAQ:

Q: What is TPR material?
A: TPR is short for thermoplastic rubber.
Q: Is TPR material environmental friendly?
A: Yes, it.

Q: Are these TPR heavy duty casters durable?
A: Yes, they are all equipped double ball bearing, so they can run smoothly, and live longer.
Q: Will these TPR heavy duty casters damage my floor?
A: No, TPR casters are soft wheels.

Q: Do i need to brake this type of side brake tpr heavy duty casters with my hand?
A: No, my friend. You just need to move your feet, no need hands.

Q: If I need a quiet environment and need to carry heavier cargo, what kind of caster should I choose??
A: Choose these TPR heavy duty casters in this link.
