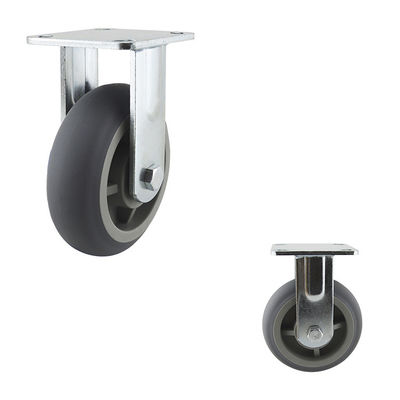

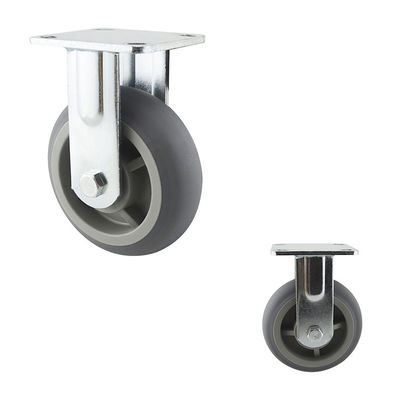

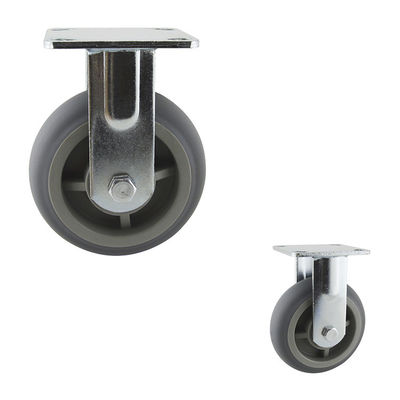

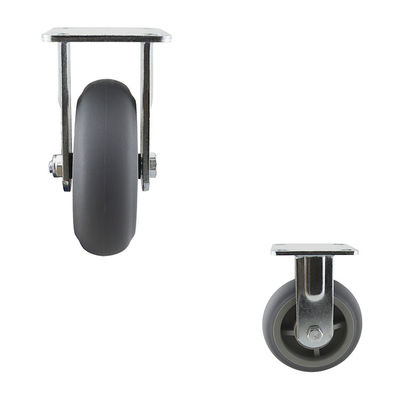

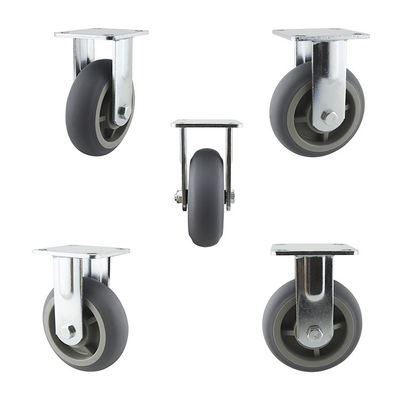

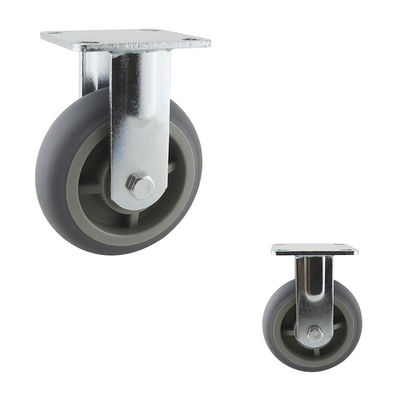

Thermoplastic Rubber 150mm 250kg Rigid Directional Locking Swivel Casters

Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I004A150TPRPF
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Carton
Delivery Time 7-15days
Payment Terms L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability 80000pcs per month
Product Details
Product Name WBD Sales 150mm Gray Soft Direction Wheel 250kg Capacity TPR Rigid Heavy Duty Casters For Retailers Style 150mm TPR Rigid Heavy Duty Casters
Wheel Size 150mm Wheel Material Thermoplastic Rubber
Caster Type Direction Bearing Precision Ball Bearing
Wheel Shape Arc Tread Feature No Brake
High Light

rigid directional locking swivel casters

,

150mm directional locking swivel casters

,

Thermoplastic Rubber 150mm  castor wheels

Leave a Message
Product Description

WBD Sales 150mm Gray Soft Direction Wheel 250kg Capacity TPR Rigid Heavy Duty Casters For Retailers

Description:
The I004A150TPRPF from WBD is a swivel frame castor and features a polyurethane wheel. This swivel castor is part of our NEW series plate range and has a maximum capacity of 250kg. The I004A150TPRPF uses ball bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The outside diameter of the polyurethane wheel is 150mm, the wheel width is 50mm and you can order separately


This type of TPR Rigid heavy duty casters adopts environmentally friendly tpr material, which is softer, quiet and pollution-free to use, and can protect the floor very well. It is suitable for scenes such as hospitals or industrial workshops with high noise requirements.

  • Housing: Stainless Steel Pressed, double ball race in the swivel head, stainless steel AISI 304, plate fitting
  • Wheel: TPR wheel, plain bearing,
  • Applications: Food processing industry, Laundry carts, pharmaceutical industry, hospitality, food transportation means, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotel, restaurant, catering, cafe, fish processors, supermarkets,
  • Suitable surface: Smooth and hard surface such as tile, cement and coatings.
  • Suitable environment: Dry and wet environment. For chemicals and saturated steam


Product Specifications: 150mm rigid heavy duty TPR casters



Model Number Wheel Diameter/Width
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Distance
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I004A150TPRPF 150x50 190 115x100 85x72 20x13 Ball Bearing 250


Thermoplastic Rubber 150mm 250kg Rigid Directional Locking Swivel Casters 0


150mm swivel side lock heavy duty TPR casters

Model Number Wheel Diameter/Width
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Distance
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I004A150TPRPB1 150x50 190 115x100 85x72 20x13 Ball Bearing 250


Thermoplastic Rubber 150mm 250kg Rigid Directional Locking Swivel Casters 1


150mm swivel type heavy duty TPR casters



Model Number Wheel Diameter/Width
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Distance
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I004A150TPRP 150x50 190 115x100 85x72 20x13 Ball Bearing 250


Thermoplastic Rubber 150mm 250kg Rigid Directional Locking Swivel Casters 2











About Us:

Thermoplastic Rubber 150mm 250kg Rigid Directional Locking Swivel Casters 3

FAQ:

Q: What is TPR material?
A: TPR is short for thermoplastic rubber.


Q: Is TPR material environmental friendly?
A: Yes, it.

Q: Will these TPR heavy duty casters damage my floor?
A: No, TPR casters are soft wheels.



Q: If I need a quiet environment and need to carry heavier cargo, what kind of caster should I choose??
A: Choose these TPR heavy duty casters in this link.
