4 Inch One Direction Medium Duty Casters Zinc Plated Surface

Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I002B100PUPF
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Paper box
Delivery Time 7-15days
Payment Terms L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability 100000pcs per month
Product Details
Product Name WBD 4" One Direction Rigid Jujube Polyuethane Medium Duty Casters Customize Style 4" PU Fixed Medium Duty Casters
Wheel Size 4inch Wheel Type Polyurethane +PP Core
Feature Ball Brake Type No
Bracket Press Steel Surface Treament Zinc Plated
High Light

4 Inch Medium Duty Casters

,

Zinc Plated Medium Duty Casters

,

110kg Capacity Medium Duty Casters

Leave a Message
Product Description



WBD 4" One Direction Rigid Jujube Polyuethane Medium Duty Casters Customize

Description:





Medium duty caster 100mm
Fixed

110kg capacity

Dark red Press steel bracket
Polyuethane Ball bearing
Tread on wheel For Transport Trolley, Service Carts etc




Product Specifications:





Top Plate Fixed Type



Model Number: I002B100PUPF

Wheel Size: 100x32mm

Overall Height: 130mm

Plate Size: 93x62mm

Bolt Hole Spacing: 72x45mm

Bolt Hole Size: 12x8.5mm

Bearing Type: Ball Bearing

Loaded Capacity: 110kg




4 Inch One Direction Medium Duty Casters Zinc Plated Surface 0



Top Plate Swivel SIde Brake Type



Model Number: I002B100PUPB1

Wheel Size: 100x32mm

Overall Height: 130mm

Plate Size: 93x62mm

Bolt Hole Spacing: 72x45mm

Bolt Hole Size: 12x8.5mm

Bearing Type: Ball Bearing

Loaded Capacity: 110kg

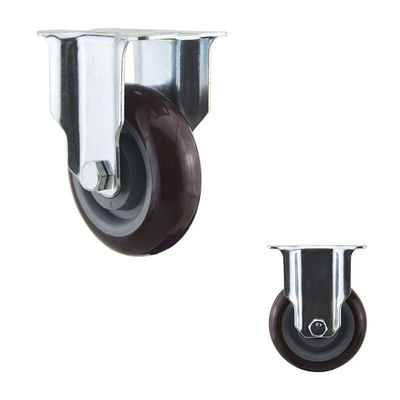

4 Inch One Direction Medium Duty Casters Zinc Plated Surface 1

Top Plate Swivel Type



Model Number: I002B100PUP

Wheel Size: 100x32mm

Overall Height: 130mm

Plate Size: 93x62mm

Bolt Hole Spacing: 72x45mm

Bolt Hole Size: 12x8.5mm

Bearing Type: Ball Bearing

Loaded Capacity: 110kg

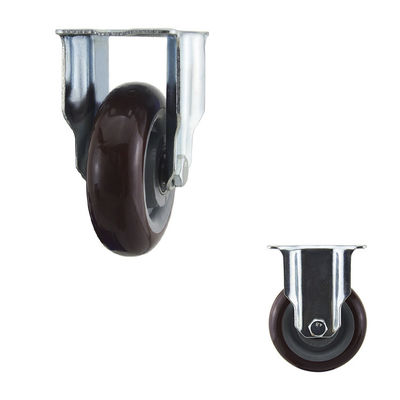

4 Inch One Direction Medium Duty Casters Zinc Plated Surface 2






























































































Other optional type: Total brake, threaded stem(swivel, swivel with side brake, swivel with total brake)




Note: Wheel color, material, mounting type, thickness of bracket, color of forks etc, we can do the personality customize.


Package:
Normal package: Carton boxs
Other package: As your request
Packaging printing: As your request





About Us:

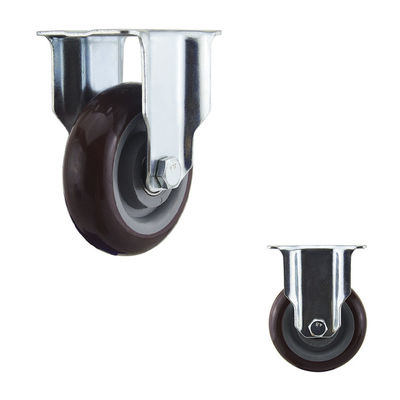

4 Inch One Direction Medium Duty Casters Zinc Plated Surface 3
