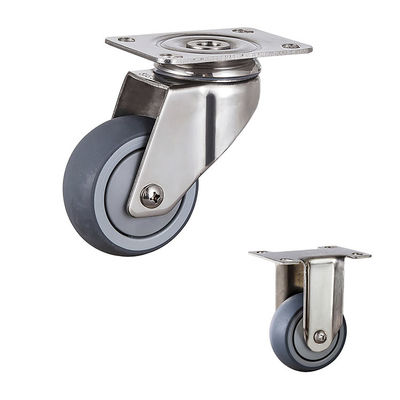

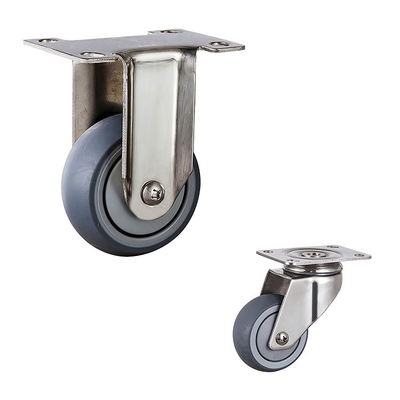

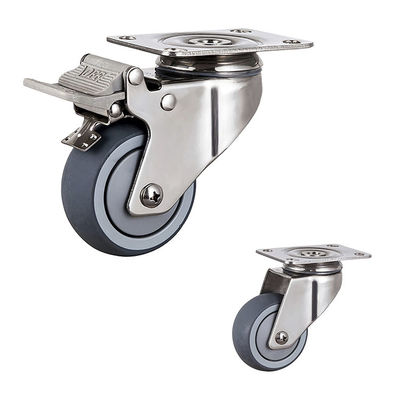

Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake

  • Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake
  • Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake
  • Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake
  • Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake
  • Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake
Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I008M075TPRPB
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details OPP bag+carton
Delivery Time 7-15days
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Soft Wheel 3inch Swivel Double Brake Stainless Steel TPR Caster Wheels Style Soft TPR Stainless Steel Casters
Application Medical Trolleys Feature Bearing Cover
Wheel Type Tread On Pp Core Wheel Color Gray
High Light

Stainless Steel TPR Caster Wheels

,

Swivel TPR Caster Wheels
Leave a Message
Product Description

Soft Wheel 3inch Swivel Double Brake Stainless Steel TPR Caster Wheels





Bracket 304 Stainless Steel
Wheel TPR On PP Core
Mounting Type Top plate/ Bolt hole/Threaded stem/Stem
Wheel Size 3inch
Capacity 80kg
Advantage Waterproof/Low noice
Application Medical Equipments




Product Specifications:

Plate Type


Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I008M075TPRPB 75x32 113 95x70 73.5x48.5 12.5x9 Ball Bearing 80
I008M100TPRPB 100x32 137 95x70 73.5x48.5 12.5x9 Ball Bearing 110
I008M125TPRPB 125x32 164 95x70 73.5x48.5 12.5x9 Ball Bearing 130



Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake 0

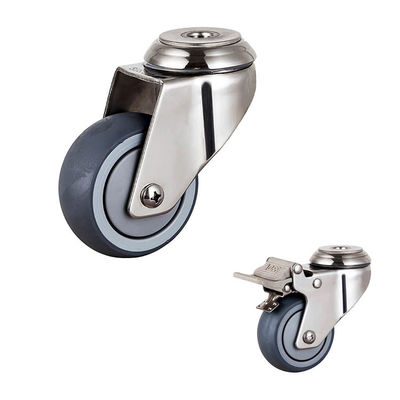

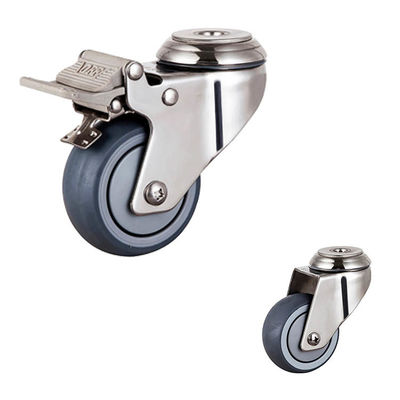

Bolt Hole Type


Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I008M075TPRDB 75x32 113 12.5 Ball Bearing 80
I008M100TPRDB 100x32 137 12.5 Ball Bearing 110
I008M125TPRDB 125x32 164 12.5 Ball Bearing 130





Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake 1

About Us:

Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake 2



Certificates:



Soft 3 Inch Stainless Steel TPR Caster Wheels Swivel Double Brake 3


FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer. Our factory has been specializing in all kinds of caster wheels since 1997.

Q: Where is your factory? Can I visit ?
A: Our factory is in Yangjiang. 2 hours by car from Guangzhou,You are welcome to visit whenever you are available.

Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order quantity.

Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, the rest will be cleared by T/T or L/C before delivery.

Q: Are samples available?
A: Yes.

Q: Can i customize my own logo/brand? If i want to make a new type of caster, is that possible?
A: Of couse, my friend. You can print your brand logo on the packing box, aslo can punching logo on the caster bracket, even produce your new model of caster with our great professional experience.
