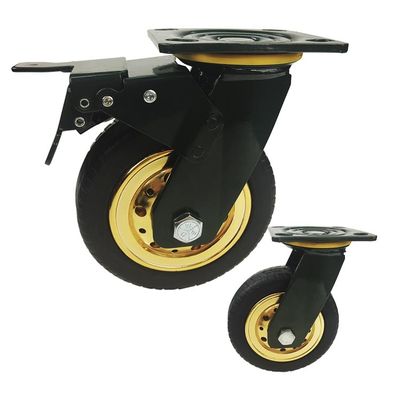

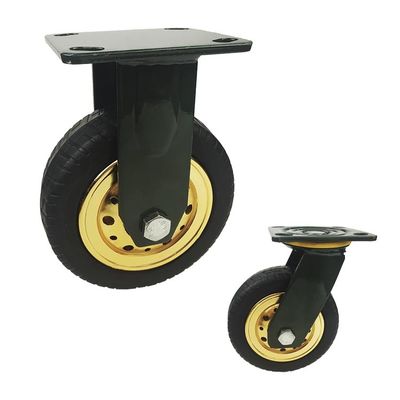

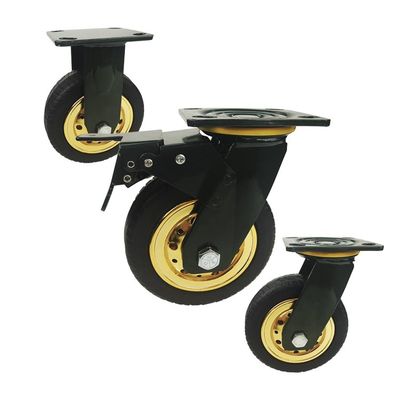

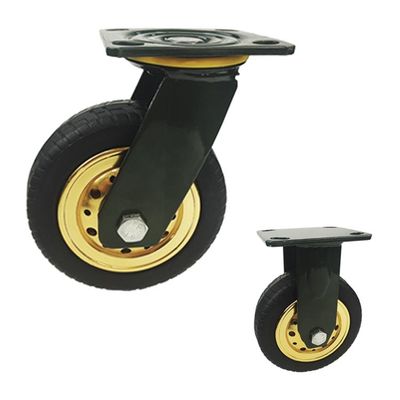

Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket

  • Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket
  • Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket
  • Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket
  • Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket
Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I004C125ERP
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Carton
Delivery Time 7-15days
Payment Terms L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability 80000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 5 Inch Top Plate Swivel Fixed Rigid Locking Pp Core Black Elastic Rubber Heavy Duty Casters Green Bracket Style Elastic Rubber Swivel Heavy Duty Caster
Capacity 230kg Wheel Material Elastic Rubber
Color Gold+Black Wheel Type Tread On Wheel
High Light

230kg capacity 5 inch locking swivel casters

,

230kg capacity swivel caster wheels with locks

,

wearable swivel caster wheels with locks
Leave a Message
Product Description

5 inch top plate swivel fixed rigid locking pp core black elastic rubber heavy duty casters green bracket



Description:

Heavy duty solid elastic rubber top plate swivel caster wheels. Rigid/fixed type, swivel with side lock, swivel with total lock type also available.

Gold and Black design.

Double ball bearing wheel.

Green painted bracket. Other bracket treatments are available.

Usually use in heavy industrial trolleys etc.

Wheel diameter range from 4 to 8 inch.

Load capacity 440lbs to 660lbs.





Product Specifications:



Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Distance
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I004C100ERP 100x50 142 115x100 85x72 20x13 Double Ball Bearing 200
I004C125ERP 125x50 166 115x100 85x72 20x13 230
I004C150ERP 150x50 195 115x100 85x72 20x13 280
I004C200ERP 200x50 240 115x100 85x72 20x13 300



Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket 0



About Us:



Wearable 230kg Capacity 5 Inch Locking Swivel Casters With Green Bracket 1

FAQ:



Q: Are you manufacturer?

A: Yes, we are.



Q: Where are you?

A: Our factory is in Yangjiang, Guangdong.



Q: What is your delivery time?

A: Normally, within 3 weeks. It also depends on the order quantity.



Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.



Q: Are samples available?

A: Yes.



Q: Can i customize my own logo/brand? If i want to make a new type of caster, is that possible?

A: Of cause, you can.
