35kg Loading 65mm Light Duty Swivel Casters With Plain Bearing

Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I001D65PPP
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details OPP bag+carton
Delivery Time 7-15days
Supply Ability 100000pcs per month
Product Details
Product Name 65mm 77lbs Top Plate Swivel White Pp Light Duty Caster Wheels For Shelves Style Light Duty White Casters
Bearing Type: Plain Bearing Application Light Weight Machines Etc
Wheel Material PP Color White
High Light

35kg loading pp caster wheels

,

65mm light duty swivel casters

,

65mm industrial steel casters

Leave a Message
Product Description

65mm 77lbs top plate swivel white pp light duty caster wheels for shelves



Description:

Light duty caster wheel made of plastic with plain bearing.
Including top plate, bolt hole, threaded stem, stem and grip ring stem mounting type are ok if necessary.
Wheel diameter rage from 2 inch to 4 inch.

Classic total brake design.

Zinc plated bracket surface treatment.
Loaded capacity from 25 kg to 50 kg.

Usually used in many kind of machines.







Product Specifications:

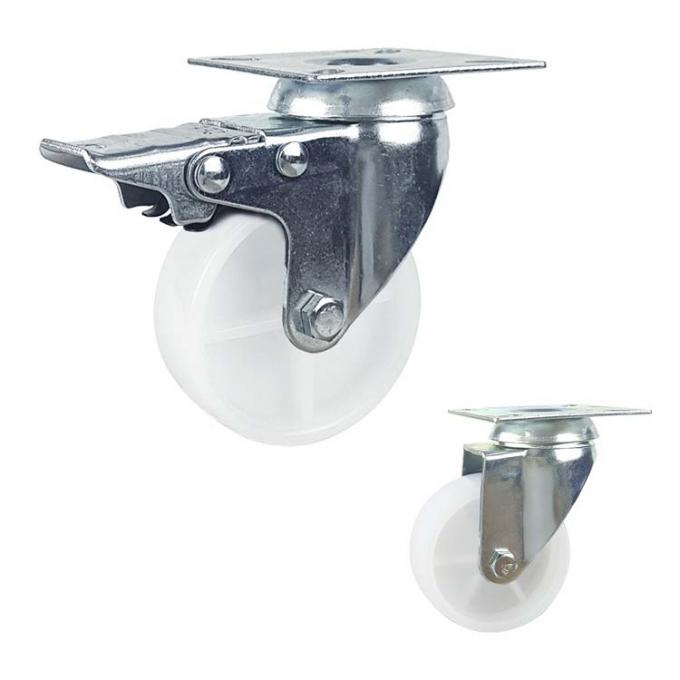

Plate Swivel Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Spacing
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I001D050PPP 50x17 69 50x50 35x35 11x6.5 Plain Bearing 25
I001D065PPP 65x21 88 65x65 45x45 11x6.5 35
I001D075PPP 75x21 100 65x65 45x45 11x6.5 40
I001D100PPP 100x27 130 76x76 55x55 15x8.5 50



35kg Loading 65mm Light Duty Swivel Casters With Plain Bearing 0

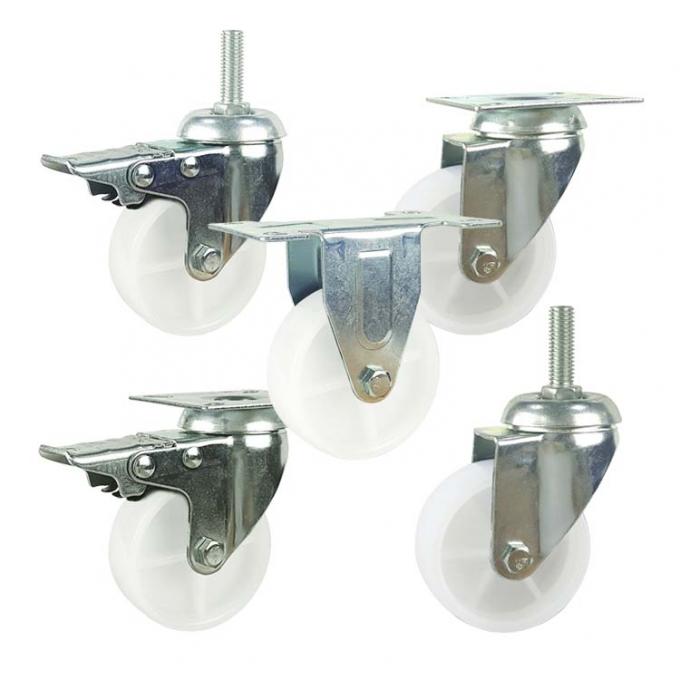

Plate Fixed/Rigid Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Spacing
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I001D050PPPF 50x17 69 65x48 52x33 8.5 Plain Bearing 25
I001D065PPPF 65x21 88 98x57 81x40 8.5 35
I001D075PPPF 75x21 100 98x57 81x40 8.5 40
I001D100PPPF 100x27 130 100x57 81x40 8.5 50

35kg Loading 65mm Light Duty Swivel Casters With Plain Bearing 1

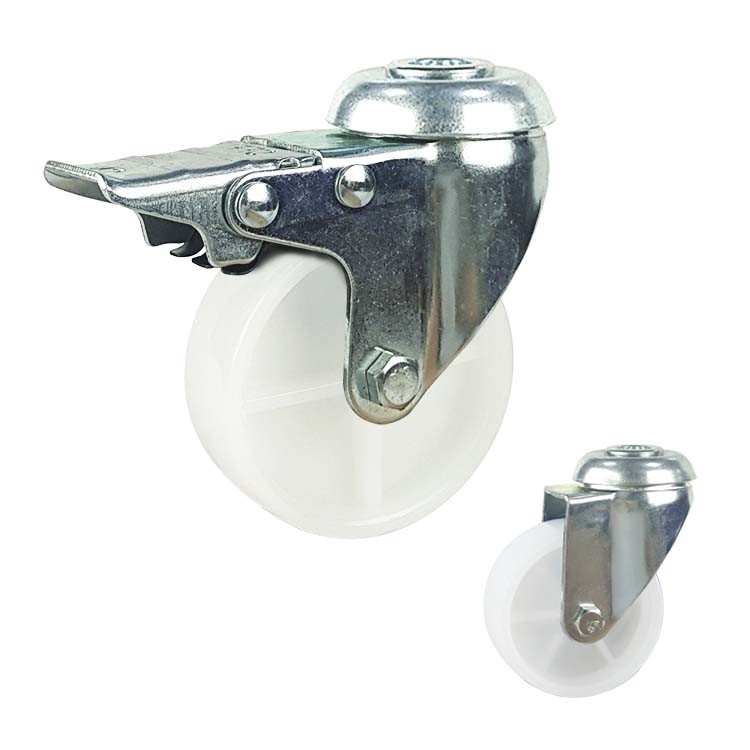

Bolt Hole Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I001D050PPD 50x17 69 10.5 Plain Bearing 25
I001D065PPD 65x21 88 10.5 35
I001D075PPD 75x21 100 12.5 40
I001D100PPD 100x27 130 12.5 50



35kg Loading 65mm Light Duty Swivel Casters With Plain Bearing 2

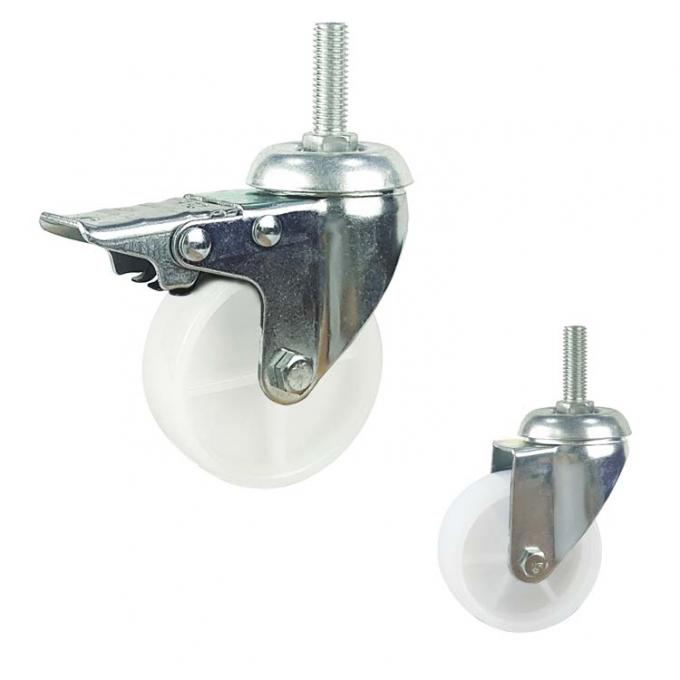

Threaded Stem Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Threaded Stem Size
MM
Bearing Type Loaded Capacity
KG
I001D050PPT 50x17 69 10x25 Plain Bearing 25
I001D065PPT 65x21 88 10x25 35
I001D075PPT 75x21 100 12x30 40
I001D100PPT 100x27 130 12x30 50



35kg Loading 65mm Light Duty Swivel Casters With Plain Bearing 3







About Us:



35kg Loading 65mm Light Duty Swivel Casters With Plain Bearing 4

FAQ:



Q: Are you manufacture or trading company?

A: We are caster wheels manufacturer. Our factory has been specializing in all kinds of caster wheels since 1997.



Q: Where is your factory? Can I visit ?

A: Our factory is in Yangjiang. 2 hours by car from Guangzhou,You are welcome to visit whenever you are available.



Q: What is your delivery time?

A: In general, within 20 days. It also depends on the order quantity.



Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, the rest will be cleared by T/T or L/C before delivery.



Q: Are samples available?

A: Yes, samples are available at any time, negotiable.



Q: Can i customize my own logo/brand? If i want to make a new type of caster, is that possible?

A: Yes, my friend. You can print your brand logo on the packing box, aslo can punching logo on the caster bracket, even produce your new model of caster with our great professional experience. We are good at doing the OEM things.
