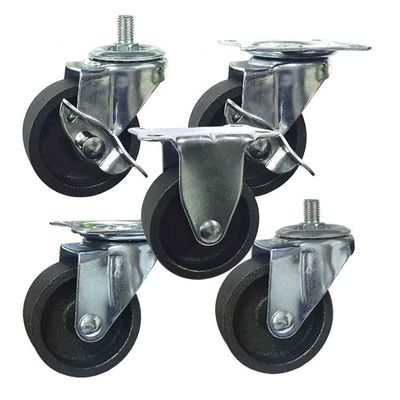

75mm Cast Iron Light Duty Casters 360 Degree Rotating With Side Locking

Place of Origin Guangdong, China
Brand Name WBD
Certification ISO9001
Model Number I001C075CPB1
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details OPP bag+carton
Delivery Time 7-15days
Supply Ability 100000pcs per month
Product Details
Product Name 75mm Rotating Top Plate Cast Iron Side Locking Light Duty Casters Style Light Duty Iron Casters
Wheel Size 75x25mm Wheel Material Cast Iron
Wheel Type Solid Wheel Bearing Type No Bearing
High Light

360 degree rotating cast iron caster wheels

,

75mm cast iron light duty casters

,

ISO9001 3 inch locking caster wheels

Leave a Message
Product Description

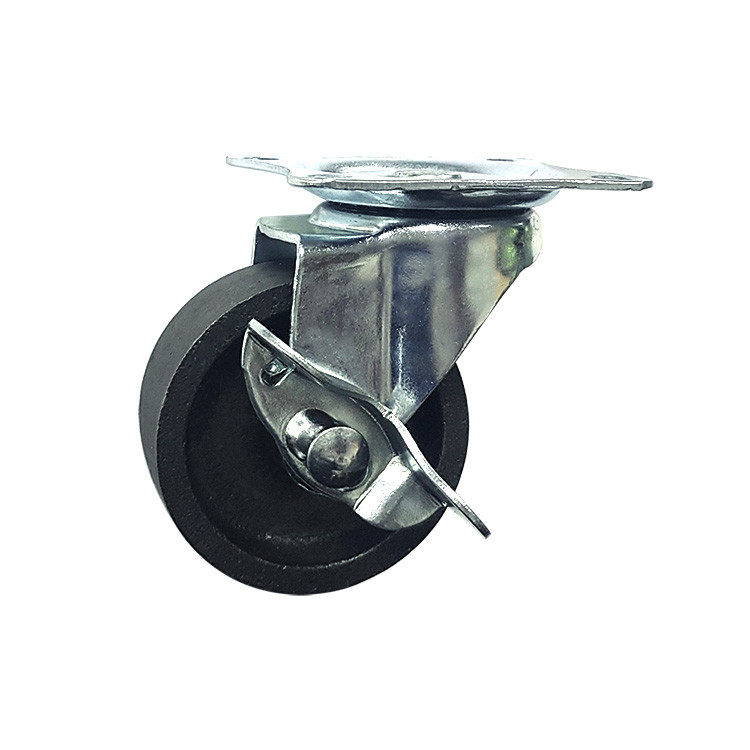

75mm rotating top plate cast iron side locking light duty casters



Description:

Style Light duty iron casters
Wheel Diameter 3inch
Wheel Color Iron
Wheel Material Cast iron



Light duty iron casters top plate type, can rotate 360 °,bolt hole, threaded stem, stem and grip ring stem type is also fine.
Loaded capacity from 10 kg to 50 kg.
Made of Iron and steel.

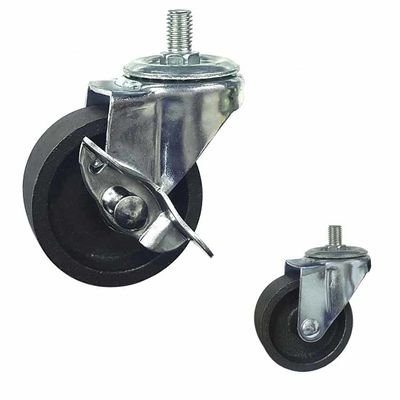

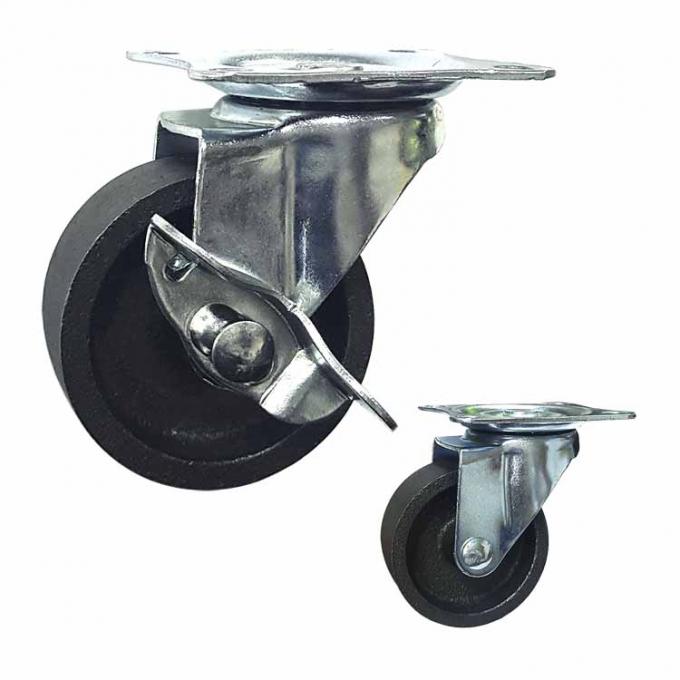

75mm Cast Iron Light Duty Casters 360 Degree Rotating With Side Locking 0



Product Specifications:

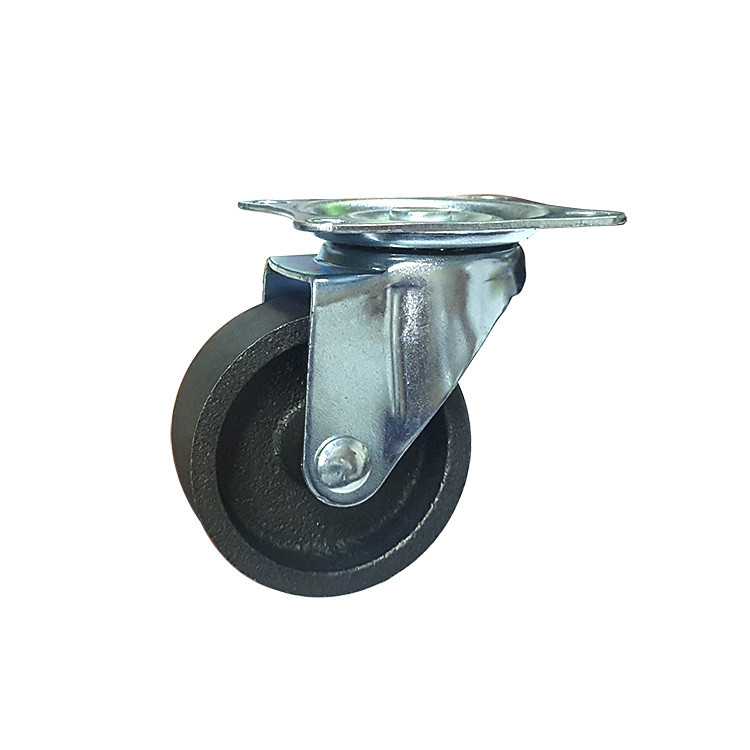

Plate Swivel Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Spacing
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I001C025CP 25x13 38 39x33 30x24 4 / 10
I001C030CP 30x13 40 39x33 30x24 5 15
I001C040CP 40x16.3 50.5 46x38 36x28 6 20
I001C050CP 50x20.3 65 58x46 46x35 6 30
I001C065CP 65x25 84 70x58 53.5x40 8 40
I001C075CP 75x25 93 70x58 53.5x40 8 50

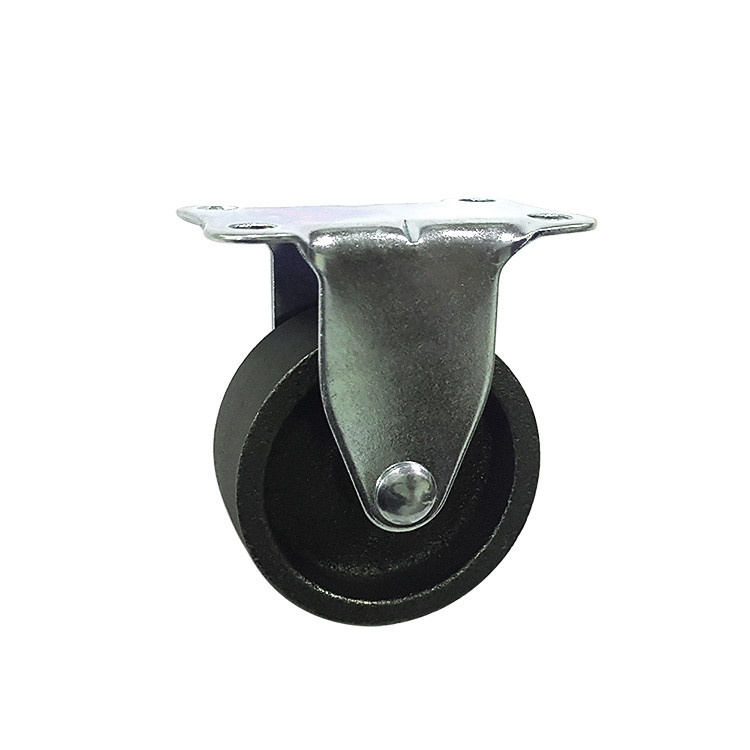

Plate Fixed/Rigid Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Plate Size
MM
Bolt Hole Spacing
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I001C025CPF 25x13 38 37x19 29 4 / 10
I001C030CPF 30x13 40 37x19 29 5 15
I001C040CPF 40x16.3 50.5 46x25 36x15 6 20
I001C050CPF 50x20.3 65 58x38.5 45x25 6 30
I001C065CPF 65x25 84 70x47 55x27 8 40
I001C075CPF 75x25 93 70x47 55x27 8 50

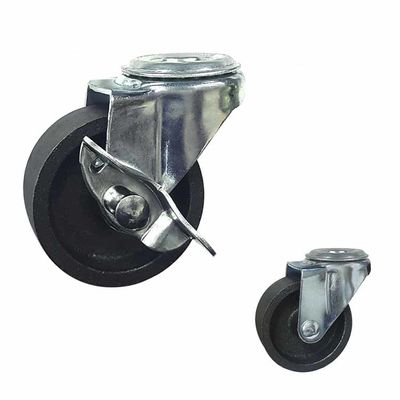

Bolt Hole Type



Model Number Wheel Diameter/Wideth
MM
Overall Height
MM
Bolt Hole Size
MM
Bearing Type Loaded Capacity
KG
I001C050CD 50x20.3 65 8 / 30
I001C065CD 65x25 84 8 40
I001C075CD 75x25 93 10 50

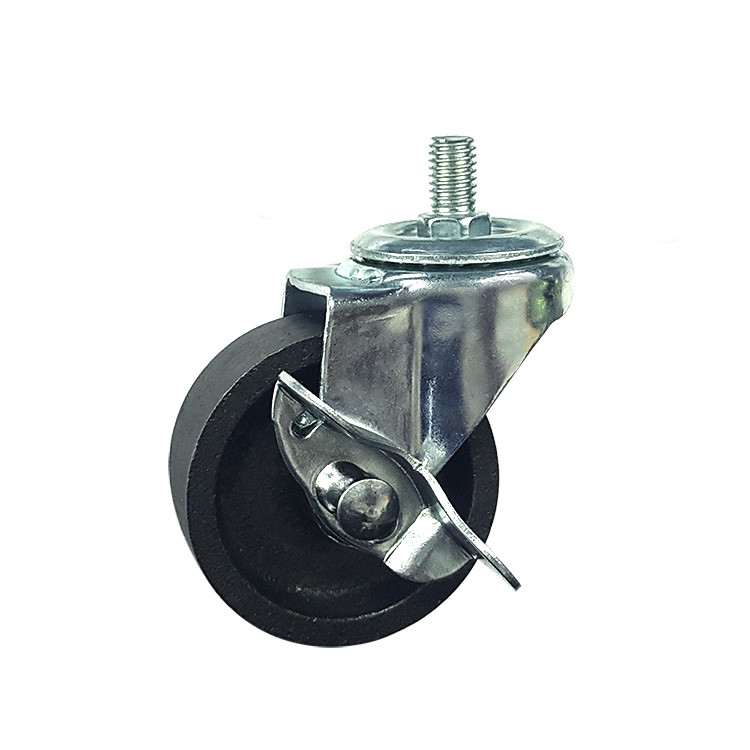

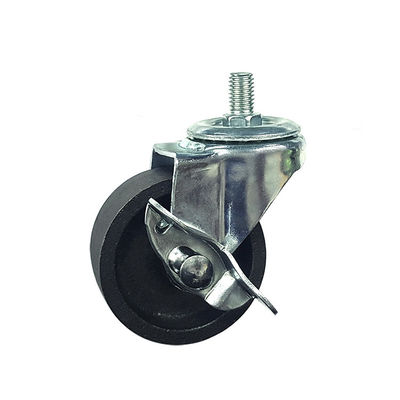

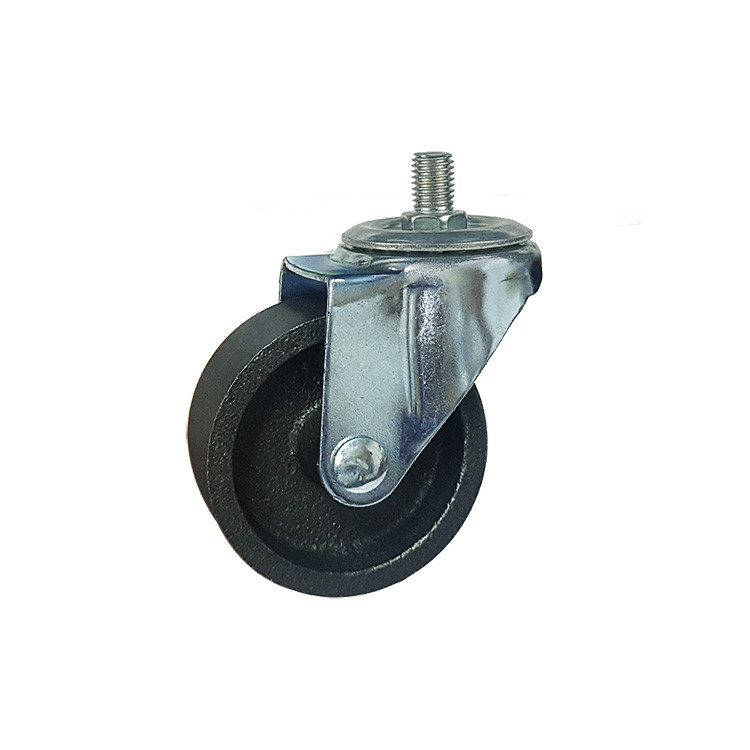

Threaded Stem Type



odel Number Wheel Diameter/Wideth
MM
Overall Height
MM
Threaded Stem Size
MM
Bearing Type Loaded Capacity
KG
I001C040CT 40x16.3 50.5 8x15 / 20
I001C050CT 50x20.3 65 8x15 30
I001C065CT 65x25 84 10x25 40
I001C075CT 75x25 93 10x25 50







About Us:



75mm Cast Iron Light Duty Casters 360 Degree Rotating With Side Locking 1

FAQ:



Q: Are you manufacture or trading company?

A: We are manufacturer of caster wheels, so as plastic foldable platform trolleys. We has been specializing in caster wheels since 1997.



Q: Where is your factory? Can I visit ?

A: Yangjiang, Guangdong. 2 hours by car from Guangzhou,You are warmly welcome to visit whenever you are available.



Q: What is your delivery time?

A: In general, less than 20 days. It also depends on the order quantity.



Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.



Q: Are samples available?

A: Yes, samples are available at any time, negotiable.



Q: Can i customize my own brand? If i want to make a new type of caster, is that possible?

A: Yes, my friend. You can print your brand logo on the packing box, aslo can punching logo on the caster bracket, even produce your new model of caster with our great professional experience. We are good at doing the OEM things.
